IMPORTANT
- Make sure your unit is plugged in.
- Make sure your unit is connected and online.
- Make sure your firmware is up-to-date. If the app does not give you the option to update, you have the latest version.
Preparation
Litter-Robot is equipped with anti-pinch sensors on both sides of the waste drawer chute to ensure your cat’s safety while in use. These sensors monitor for potential pinch conditions at all times.
If your unit displays a green and white alternating light bar, this indicates an anti-pinch fault during power up.
You will also receive a notification on your phone if you use the Whisker app.
- First, let’s check inside the waste drawer to see if there are any foreign objects that could be activating the sensors.
- Now, let's run a test cycle. Short press the Resetbutton, then short press theCyclebutton to run a Clean cycle.
- After the test cycle, Litter-Robot should be in the Home position displaying a blue light bar.
Successful: If your unit displays ablue light bar, you've been successful.
Unsuccessful: If you are still seeing a green and white alternating light bar, please continue.
Troubleshooting
Let’s check for any additional items or debris that might be contacting the anti-pinch sensors.

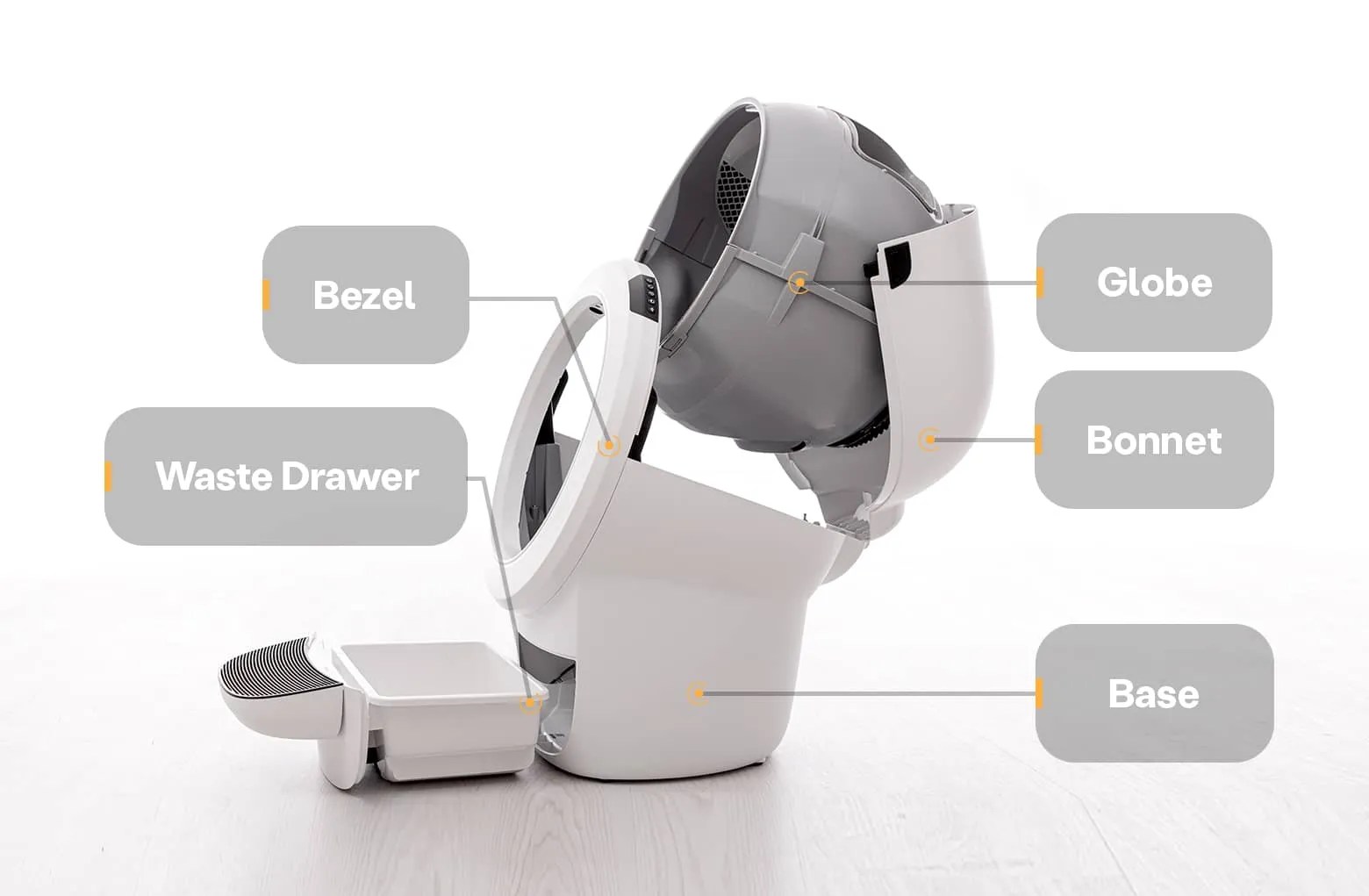

- First, we will remove the bonnet and globe to look for any issues.
- Make sure the unit is in the Home position.
- Press the Power button to turn the unit off, then unplug the unit from the wall.
Removing the bonnet
- To open the bonnet, press and hold the latches on both sides of the bonnet, then lift and rotate the bonnet to its open position.
- Set the bonnet aside.
- If you have a fence installed, remove this from the bezel.
Note: Typically need to remove the bonnet completely only during deep cleaning or bonnet replacement.
Removing the globe
- To remove the globe, grab the black handle located on top of the globe, lift the globe out of the base, and set it aside.
- Remove the waste drawer and empty it or set it aside.
A firm, level surface is required for accurate detection of cats and weight readings.
Inspecting the anti-pinch sensors
The anti-pinch sensors are located at the sides of the dump port within the base. These are active at all times to ensure we can detect any motion within the drawer.
- Make sure both pinch bars are free of debris and clean.
- Press inward on each of the pinch bars. You should hear an audible click. This ensures the anti-pinch sensors are working properly.
Inspecting the carbon filter
The carbon filter is located on the underside of the globe. If it is not fully seated, it is possible that it may have contacted an anti-pinch sensor during the cycle.
- Make sure the filter cover is fully seated and has not popped out during shipping or cleaning.
- Check for and remove any obstructions around the waste port hole and in the globe track.
Now that we’ve checked for any obstructions let’s re-install the globe and bonnet and check for proper operation of the unit.
Installing the globe
- To install the globe, hold the globe by the black handle and set it into the base.
- When installing the globe, keep the globe handle and waste port oriented toward the top to ensure the globe is close to the Home position.
- The large black gear on the rear of the globe should easily engage with the smaller white drive gear in the base.
Installing the bonnet
- If the bonnet was completely removed, rotate the bonnet upward and align the hinge feature of the bonnet at the back of the base.
- To close the bonnet, rotate the bonnet downward over the globe, applying slight inward pressure at the latches to align the bonnet within the base. You should hear the latches snap into place.
- Check to make sure the center tab at the top of the bonnet is secured in its pocket by pushing down on the bonnet at the tab location.
Final steps
- Reinstall the fence by snapping it onto the bezel at the globe entrance.
- Plug the unit in and power it on.
- The Litter-Robot will then perform a Clean cycle and return to the Home position with a blue light bar.
Successful: If your unit returned home and displays ablue lightbar, you've been successful.
Unsuccessful: If you are still seeing agreen and white alternating light bar, there's likely an issue with your Litter-Robot.
Issue not resolved?
To repair your Litter-Robot, you will need a new base.
What do I do?
My unit is covered by WhiskerCare™
If your Litter-Robot is covered by WhiskerCare™ warranty, you have access to replacement parts, at no cost, to get your Litter-Robot up-and-running quickly. Please contact our Customer Experience Team for further assistance.
The warranty on my unit has expired
If your unit is no longer under warranty, we can help you with the necessary parts and instructions to properly fix your unit at home.Part Needed:
- Litter-Robot 4 Base | Installation Instructions
